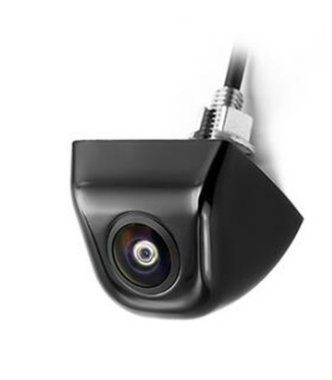

GreenYi 170° Starlight Night Vision Car Camera – Rear & Front, 15m Night Vision, 1000 TVL

See Clearly. Day or Night.

The GreenYi 170° fisheye starlight camera delivers exceptional low-light night vision up to 15 meters — far beyond standard backup cameras. The MCCD 1409 military-grade low-light sensor captures 1000 TV lines of resolution with minimal interference, giving you a wide, clear view whether you’re reversing in a dark parking lot or monitoring the front of your vehicle. Configurable as a rear or front camera with or without distance guidelines, using simple wire-cut setup. Compatible with Android DVD players and any TFT car monitor.

Key Features

• 170° fisheye lens — ultra-wide field of view, eliminates blind spots
• Starlight low-light night vision — 15m visible distance in near-darkness
• MCCD 1409 sensor — 1000 TV lines, 720px effective resolution
• Rear or front camera — configurable via simple wire-cut setup
• Distance guidelines on/off — cut green wire to disable scale lines
• Mirror/non-mirror mode — cut white wire to switch image orientation
• NTSC / PAL selectable — compatible with global car monitor standards
• DC 12V powered — connects to reversing lights (not ACC)
• Compatible with Android DVD players and TFT car monitors

Wire Configuration Guide

• Rear camera + distance lines: cut no wires
• Rear camera, no distance lines: cut green wire
• Front camera + distance lines: cut white wire
• Front camera, no distance lines: cut both green and white wires

Important Installation Notes

• The 4-pin to RCA cable is a dedicated cable and cannot be replaced; the 6m video cable can be replaced
• The red power wire (+12V) must connect to the reversing light, not ACC

Specifications

• Sensor: MCCD 1409 | Resolution: 1000 TV lines / 720px
• Night vision: 15m | Lens: 170° fisheye
• TV system: NTSC / PAL | Power: DC 12V
• White balance: Auto
